Regarding the issue of how to produce high-quality connector wire harnesses, Suzhou Lianxun Electronics Co., Ltd. has been emphasizing the quality and accuracy of connector wire harness components, always providing customers with solutions that meet their needs. Here are some tips for producing high-quality connector harnesses shared by Suzhou Lianxun Electronics!

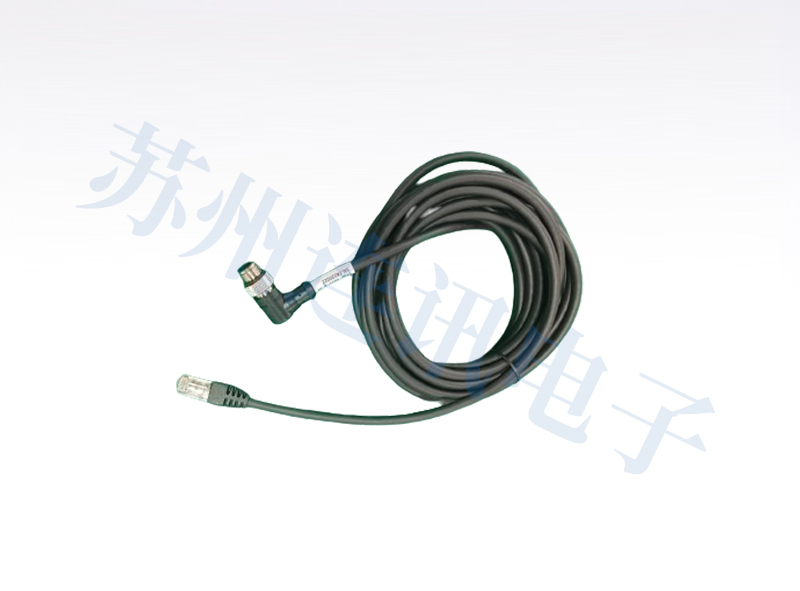

Connector harness, Suzhou Lianxun Electronic Connector Harness Manufacturer
High quality connector wire harness production techniques:
1. The insulation of the connector harness must fully enter and extend through the crimping piece.
2. Multiple wires inside the insulation layer of the connector harness must pass through the insulation crimping piece.
3. The crimping of connectors will not damage the insulation material of the wiring harness.
4. When crimping the connector, it should be completely wrapped and support the insulation of the wire harness, and openings greater than 45 degrees should not be exposed.
5. The insulation material of the wiring harness has not been pierced to the extent that the protruding part penetrates the conductor or wire.
6. The connector crimping piece should be in contact with the top of the wire harness insulation layer.
7. The insulation layer of the wiring harness should be flush with the crimping wire of the connector.
8. Identify the insulation layer of the wiring harness that shows damaged wires.
9. Wires, connectors, assembly processes, and wire harness insulation must all comply with compatibility.
The above are 9 tips for producing high-quality connector wire harnesses shared by Suzhou Lianxun Electronics Co., Ltd. We hope it can help everyone understand more about the wire harness industry! Suzhou Lianxun Electronics Co., Ltd. is a professional manufacturer specializing in the production, development, and sales of high-quality wire and cable/ultra-thin coaxial wire and cable assembly products. We specialize in the production, development, and sales of ultra-thin coaxial wire and cable, connecting wires, and connectors, fully capable of meeting the needs of various customers.
Suzhou Lianxun Electronics Co., Ltd. produces industrial wiring harnesses, energy storage wiring harnesses, solar wiring harnesses, DC wiring harnesses, M12 aviation plug wiring harnesses, aerospace wiring harnesses, electrical control cabinet wiring harnesses, 3C new national standard plug wiring harnesses, medical equipment wiring harnesses, military wiring harnesses, satellite navigation wiring harnesses, etc.
